10.1-inch 1920x1200 TFT-LCD

10.1 Inch 1902x1200 TFT-LCD Panel

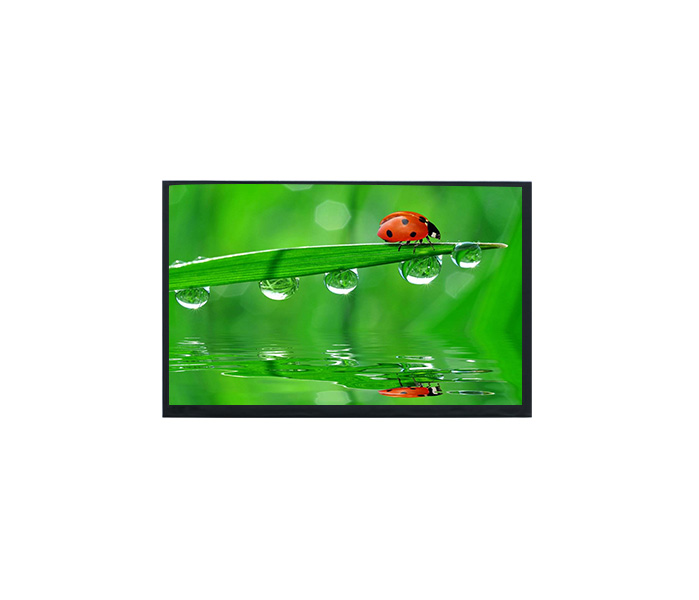

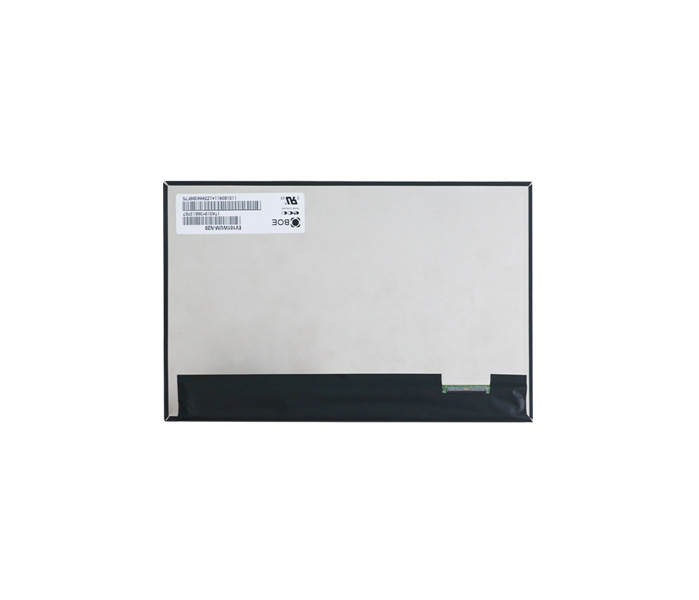

EV101WUM-N20 is a 10.1 inch diagonally TFT-LCD module with WUXGA resolutions (1920 horizontal by 1200 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots, which are arranged in vertical stripe and this module can display 16.7M colors with 75% NTSC of color gamut. This LCD employs one-interface connections; a 45-pin connector is used for the LCD module electronics and backlight interface. The connector is FH34SRJ-45S-0.5SH (50) (HRS) or equivalent.

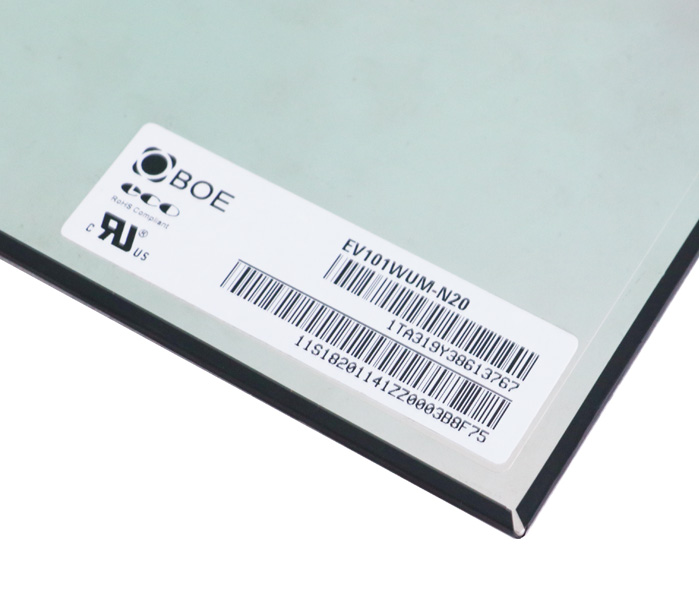

This module is designed and manufactured by BOE Technology Group Co., Ltd. EV101WUM-N20 is a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen originally. It features an operating temperature range of -20^oC ～ 70^oC, a storage temperature range of -25^oC ～ 80^oC. This module is recommended for medical imaging, industrial equipment, handheld devices and etc. This brightness and operating temperature can also be used on half-outdoor applications, like smart door entrance display panels, or smart mirror touchscreens, grey glass touch screens and etc.

General Specification

For a TFT-LCD module, which is regarded as display panel, usually, we provide a protective glass as required. This glass is chemically strengthened to be 6H hard surface and 90% transimittance of 550nm natural light. It is intalled on top of the display to protect the LCD panel and beautify the product. You can have your logo or marketing text on the glass via silk-printing process.

You may not be happy with the brightness of this TFT-LCD module if it is installed outdoor. For outdoor product, the brightness is required to be above 1000nits, and wide operating temperature of -20~70 celsiuls degree. For such requirement, we recommend another 1920x1200 pexel LCD module. It is released by BOE for outdoor industrial environment with direct sunlight. Please take a look at main features via below table.

General Specification

Do you need it to have touch fucntion, multi-touch or single touch? Just contact us to discuss further. We support sample need, small quantity need and mass order.
